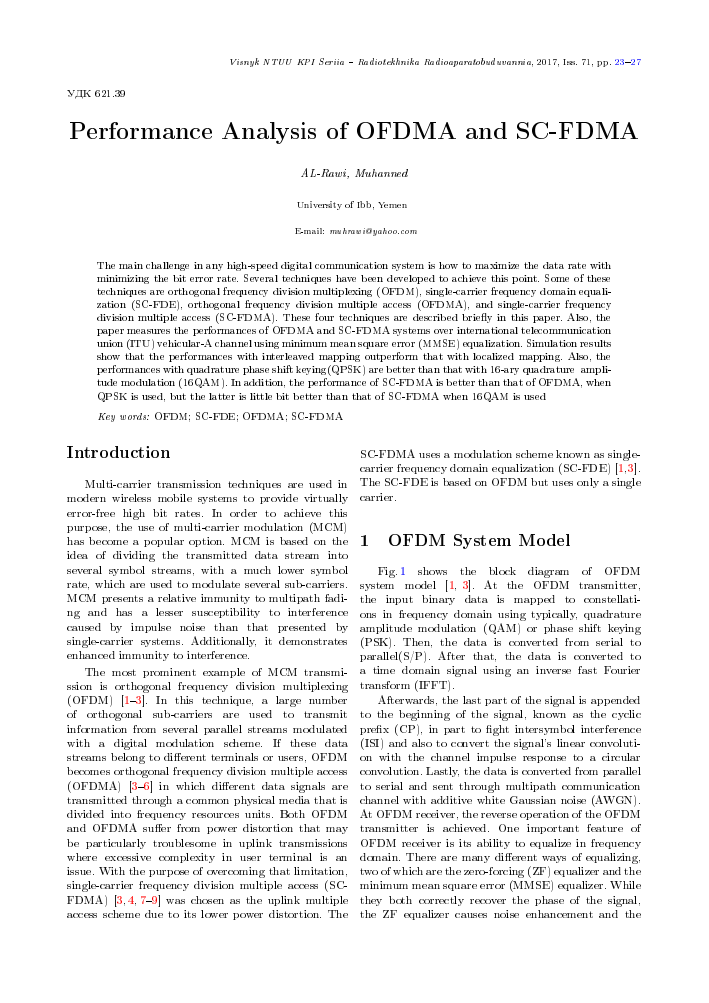

Performance Analysis of OFDMA and SC-FDMA
AL-Rawi, Muhanned
University ol Ibb, Yemen E-mail: m uhrawi&yahoo. com
The main challenge in any high-speed digital communication system is how to maximize the data rate with minimizing the bit error rate. Several techniques have been developed to achieve this point. Some of these techniques are orthogonal frequency division multiplexing (OFDM), single-carrier frequency domain equalization (SC-FDE). orthogonal frequency division multiple access (OFDMA). and single-carrier frequency division multiple access (SC-FDMA). These four techniques are described briefly in this paper. Also, the paper measures the performances of OFDMA and SC-FDMA systems over international telecommunication union (ITU) veliicular-A channel using minimum mean square error (MMSE) equalization. Simulation results show that the performances with interleaved mapping outperform that with localized mapping. Also, the performances with quadrature phase shift keying(QPSK) are better than that with 16-ary quadrature amplitude modulation (16QAM). In addition, the performance of SC-FDMA is better than that of OFDMA. when QPSK is used, but the latter is little bit better than that of SC-FDMA when 16QAM is used
Key words: OFDM: SC-FDE: OFDMA: SC-FDMA
Introduction
Multi-carrier transmission techniques are used in modern wireless mobile systems to provide virtually error-free high bit rates. In order to achieve this purpose, the use of multi-carrier modulation (MCM) has become a popular option. MCM is based on the idea of dividing the transmitted data stream into several symbol streams, with a much lower symbol rate, which are used to modulate several sub-carriers. MCM presents a relative immunity to multipath fading and has a lesser susceptibility to interference caused by impulse noise than that presented by single-carrier systems. Additionally, it demonstrates enhanced immunity to interference.
The most prominent example of MCM transmission is orthogonal frequency division multiplexing (OFDM) fl 3]. In this technique, a large number of orthogonal sub-carriers are used to transmit information from several parallel streams modulated with a digital modulation scheme. If these data streams belong to different terminals or users. OFDM becomes orthogonal frequency division multiple access (OFDMA) [3 C] in which different data signals are transmitted through a common physical media that is divided into frequency resources units. Both OFDM and OFDMA suffer from power distortion that maybe particularly troublesome in uplink transmissions where excessive complexity in user terminal is an issue. With the purpose of overcoming that limitation, single-carrier frequency division multiple access (SC-FDMA) [3.4.7 9] was chosen as the uplink multiple access scheme due to its lower power distortion. The
SC-FDMA uses a modulation scheme known clS S1H gle-carrier frequency domain equalization (SC-FDE) [1,3]. The SC-FDE is based on OFDM but uses only a single carrier.
1 OFDM System Model
Fig. 1 shows the block diagram of OFDM system model [1, 3]. At the OFDM transmitter, the input binary data is mapped to constellations in frequency domain using typically, quadrature amplitude modulation (QAM) or phase shift keying (PSK). Then, the data is converted from serial to parallel(S/'P). After that, the data is converted to a time domain signal using an inverse fast Fourier transform (IFFT).
Afterwards, the last part of the signal is appended to the beginning of the signal, known as the cyclic prefix (CP), in part to fight intersymbol interference (ISI) and also to convert the signal's linear convolution with the channel impulse response to a circular convolution. Lastly, the data is converted from parallel to serial and sent through multipath communication channel with additive white Gaussian noise (AWGN). At OFDM receiver, the reverse operation of the OFDM transmitter is achieved. One important feature of OFDM receiver is its ability to equalize in frequency domain. There are many different ways of equalizing, two of which are the zero-forcing (ZF) equalizer and the minimum mean square error (MMSE) equalizer. While they both correctly recover the phase of the signal, the ZF equalizer causes noise enhancement and the
Fig. 1. OFDM system model Fig. 2. SC-FDE system model
2 SC-FDE System Model
Fig. 2 shows the block diagram of SC-FDE system model [1. 3]. SC-FDE is a variation of OFDM, a modulation scheme that contains all the same blocks but moves the IFFT from the transmitter to the receiver. The difference between this system and OFDM is that the constellation mapping takes place in time domain, and the CP is the last time samples appended to the beginning of the signal. Eqnivalently, an SC-FDE symbol is a group of N + A modulated (QAM. PSK) sub-symbols, where N is the length of
A
length of the cyclic prefix. This makes for a very simple transmitter. By moving the IFFT to the receiver, equalization is done with a simple multiplication in frequency domain like in an OFDM receiver.
3 OFDMA System Model
The OFDMA system model is shown in Fig. 3 [3,4]. OFDMA is very similar to OFDM in function, with the main difference being that instead of being allocated all of the available snbearriers, the base station allocates a subset of carriers to each nser in order to accommodate multiple transmissions simultaneously.
transmitter receiver
Fig. 3. OFDMA system model
A problem with OFDMA as compared to OFDM is its high sensitivity to frequency offset. In OFDM since
Performance Analysis of OFDMA and SC-FDMA
■25
all the frequencies of the subcarriors wore generated by one transmitter, maintaining orthogonality of the subcarriors is relatively easy. In OFDMA. since many users transmit simultaneously, each with their own estimates of the snbearrier frequencies, a frequency offset is inevitable and multiple access interference occurs as users' power leaks into subcarriors bands.
4 SC-FDMA System Model
The SC-FDMA system model is shown in Fig. 4 [3, 4]. SC-FDMA is the multiple access version of SC-FDE, which is similar to OFDM, in that they both perform channel estimation and equalization in the frequency domain. Multiple access is achieved in frequency domain in SC-FDMA. Tims to transition from SC-FDE to SC-FDMA requires division frequency amongst frequencies. This is achieved by the first performing an W-point FFT on the output of the symbol mapper, and mapping the output of the FFT to N of M subcarriors, with M = QN where Q is an integer called the bandwidth expansion factor of the symbol, which is effectively the number of simultaneous users that the system supports. Afterwards the M-point IFFT converts the signal back into time domain. Likewise in the receiver, only N of the M frequencies of the output of the FFT correspond to this nsor, so those N values are equalized and an W-point IFFT is performed to get the original signal back.
Input data _i_
Output data
Symbol mapping
put
S/P
X
Symbol demappin
P/S
N-point FFT
m
I
Subcarrier mapping
I
N-point IFFT
m
Subcarrier demapping/ Equalizer
M-point IFFT
I
I
Append CP
M-point FFT
Remove CP
P/S Multipath channel S/P
—► with AWGN —►
SC-FDMA transmitter
SC-FDMA receiver
An important consideration to be made is how the N points of the signal are mapped to the M subcarriors of the system. Two main strategies exist: use N adjacent subcarriors, called localized FDMA (LFDMA) or distribute the N values across the M subcarriors using every Q-th subcarrier, called interleaved FDMA (IFDMA). Also, these two strategies are applicable for OFDMA. The disadvantage of IFDMA is that it is very sensitive to frequency offset like OFDMA since different users take adjacent subcarriors. LFDMA, however, is much less affected by this because it only-lias at most two adjacent users.
5 Simulation Results
Computer simulation tests are carried out on OFDM A system model shown in Fig. 3, and SC-FDM A system model shown in Fig. 4. The performances of OFDMA and SC-FDMA systems are measured, over multipath channel with AWGN, in terms of bit error rate (BER) versus signal to noise ratio (Eb/'No). The type of channel used is ITU vehicular-A channel. Two modulation formats are used, QPSK, and 1GQAM. The type of equalizer used is MMSE equalizer. Two mapping strategies are involved in the simulation, localized mapping and interleaved mapping.
Fig. 5 and Fig. 6 show the performances of OFDM A and SC-FDMA systems respectively. It can be concluded that the performances of both systems with interleaved mapping are bettor than that with localized mapping for both modulation formats. Also, the performances with QPSK are bettor than that with 16QAM. In addition, by comparing between Fig. 5 and Fig. 6, it can be soon that the performance of SC-FDMA is bettor than that of OFDMA for both mapping strategies with QPSK modulation format. But, the performance of OFDMA is little bit better than that of SC-FDMA for both mapping strategies with 16QAM modulation format.
Fig. 4. SC-FDMA system model
Fig. 5. Error rate performance of OFDMA
MMSE Equalization
— Localized mapping •
__ El- Interleaved mapping ■ ■
\ \ "тГГч 6 QAM
N \ \ \ \ V \ ç ч v \ \ \ N
V \ \ —y— _s_ \
\ * 3 \
: QPSK—Ц- \ л \ \ \v > и —*-^ : \
; V \ \ \ —x— —ч—■■ \
- \ \ \ \ )l
0 5 10 15 20 25 30
EbN0[dB]
Fig. 6. Error rate performance of SC-FDMA
[6] Khan A. S., Fauzi A. H., R. Thangaveloo R., .lulahi A. A. and Tarmizi S. (2015) A Review on Orthogonal Frequency Division Multiple Access (OFDMA) in Broadband Wireless Access. International .Journal of Advanced Engineering Research and Applications, Vol. 1. No. 8. pp. 320-336.
[7] Mewada R. and Sharma A. (2014) Review Analysis for Implementation of SC-FDMA over WiMAX Broadband Networks. International .Journal of Engineering Trends and Technology. Vol. 11. No. 10. pp. 510-515. DOl: 10.14445/22315381/ijett-vllp300
[8] Singh N. and Mittal R. (2014) Review on Performance Analysis of Detection of Single Carrier FDMA, International .Journal of Engineering Research & Technology. Vol.3, Is. 8., pp. 307-309.
[9] Lande S. B„ Oawali .1. D. and Kharad S. M. (2016) Performance Evolution of SC-FDMA for Mobile Communication System, International .Journal of Future Generation Communication and Networking, Vol.9, No.2, DOl: 10.14257/ijfgcn.2016.9.2.24
Conclusion
OFDM, SC-FDE, OFDMA, and SC-FDMA systems were presented in this paper. The performances of OFDMA and SC-FDMA systems were measured over ITU vehicular-A channel using localized and interleaved mapping strategies with QPSK and 1GQAM modulation formats, and MMSE equalizer. From the measuring results, it can be concluded that the performances with interleaved mapping are better than that with localized mapping. Also, the performances with QPSK are better than that with 16QAM.
Furthermore, the performance of SC-FDMA is better than that of OFDMA in case of QPSK modulation format, but the performance of OFDMA is little bit better than that of SC-FDMA in case of 1CQAM modulation format.
